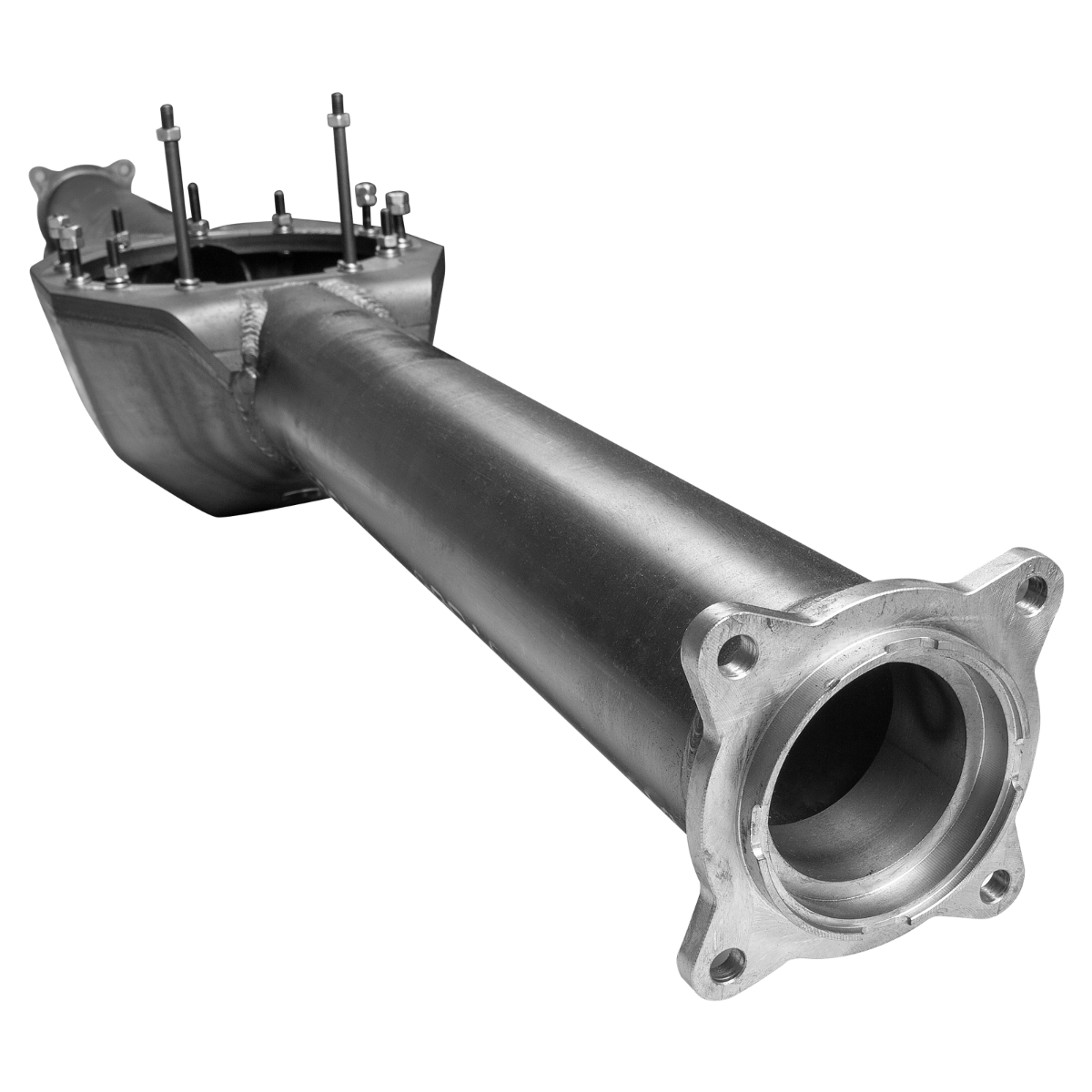

Fabricated 05-15 Tacoma Rear Axle Housing

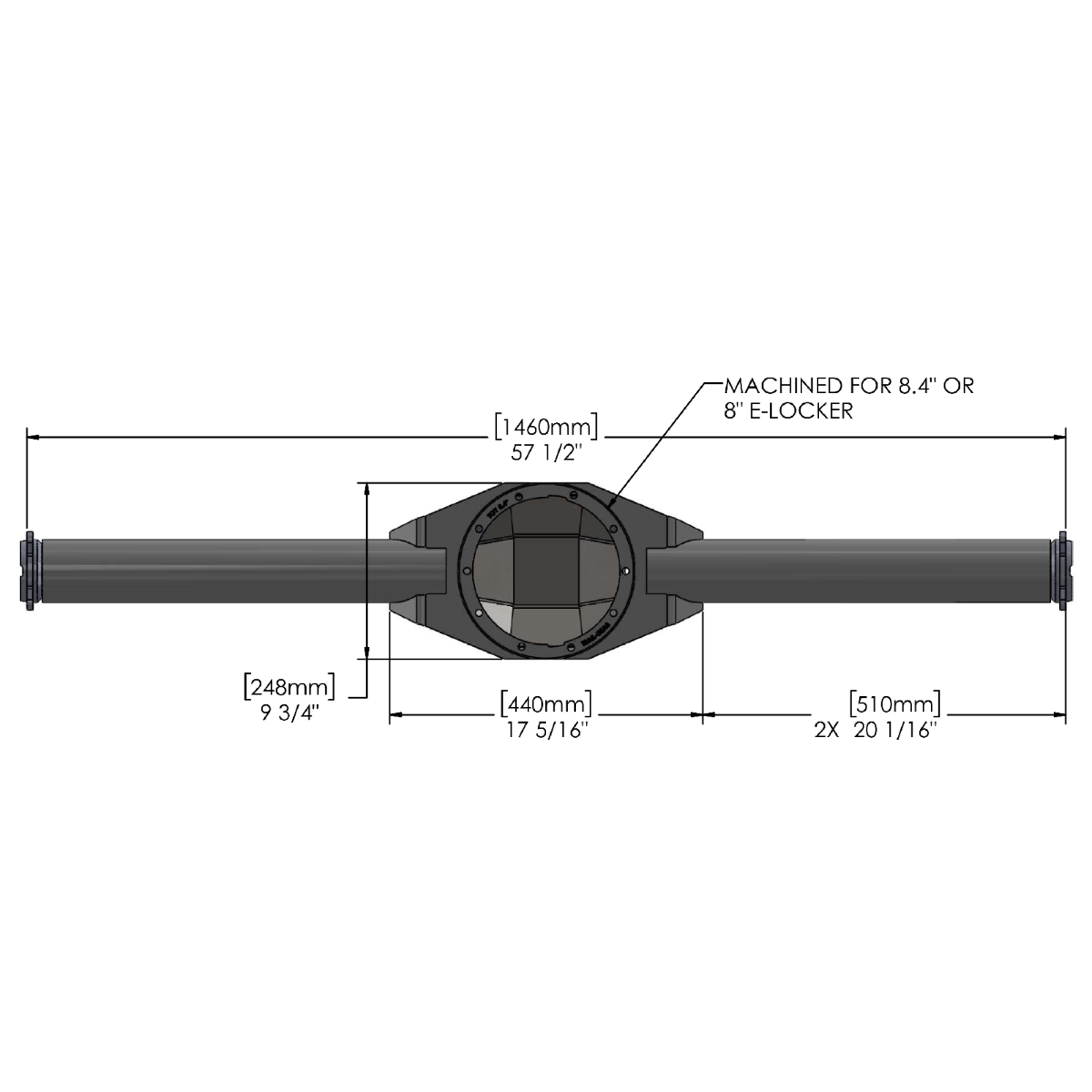

Trail-Gear’s Fabricated 2005-2015 Tacoma Axle Housings are available for Toyota 8" E-locker, or 8.4" differentials. 2005-2015 Tacoma Rear Axle housings come with rear axle flanges welded on at the factory width. This Housing will reuse all factory components including axles and differential. ABS will also still remain functional with this housing
We started with a 1/4" thick formed shell for the center section made out of ASTM A36 steel. This is a high-strength, low alloy, structural steel plate with a minimum yield strength of 36,000 psi! All of this is attached to an equally strong 1/2" thick faceplate for anchoring the1/4” thick 3.5” OD DOM axle tubes. The axle tubes are secured by the industry's first 3-point attachment system, giving the tubes superior support and engagement into the center section. We also face the center section to ensure your differential mounts flush against the axle housing to prevent leaks.
- Customer choice of Fabricated 8” Elocker, or 8.4” Axle housing
- 1/4” CNC formed center section
- 1/2” Formed faceplate
- DOM axle tube
- 3-point attachment system
- Faceplate is machined after welding to ensure that the differential mounts flush
- Accepts Toyota 8”, Toyota 8" e-locker or Toyota 8.4" differential
- Made in USA
- Ships bare
