Trail-Creeper 2.28 Crawl Box
Trail-Creeper 2.28 Crawl Box
Trail-Creeper 2.28 Crawl Box
Roll over image to zoom in Click on image to zoom
Trail-Creeper 2.28 Crawl BoxTrail-Creeper 2.28 Crawl BoxTrail-Creeper 2.28 Crawl Box

Trail-Creeper 2.28 Crawl Box

Trail-GearSKU: TGI-309362
No reviews
2.28 Gears: New
Input/Output: 21-Spline/21-Spline
Shift Rails: Top Shift
Price:
$1,529.57

Description

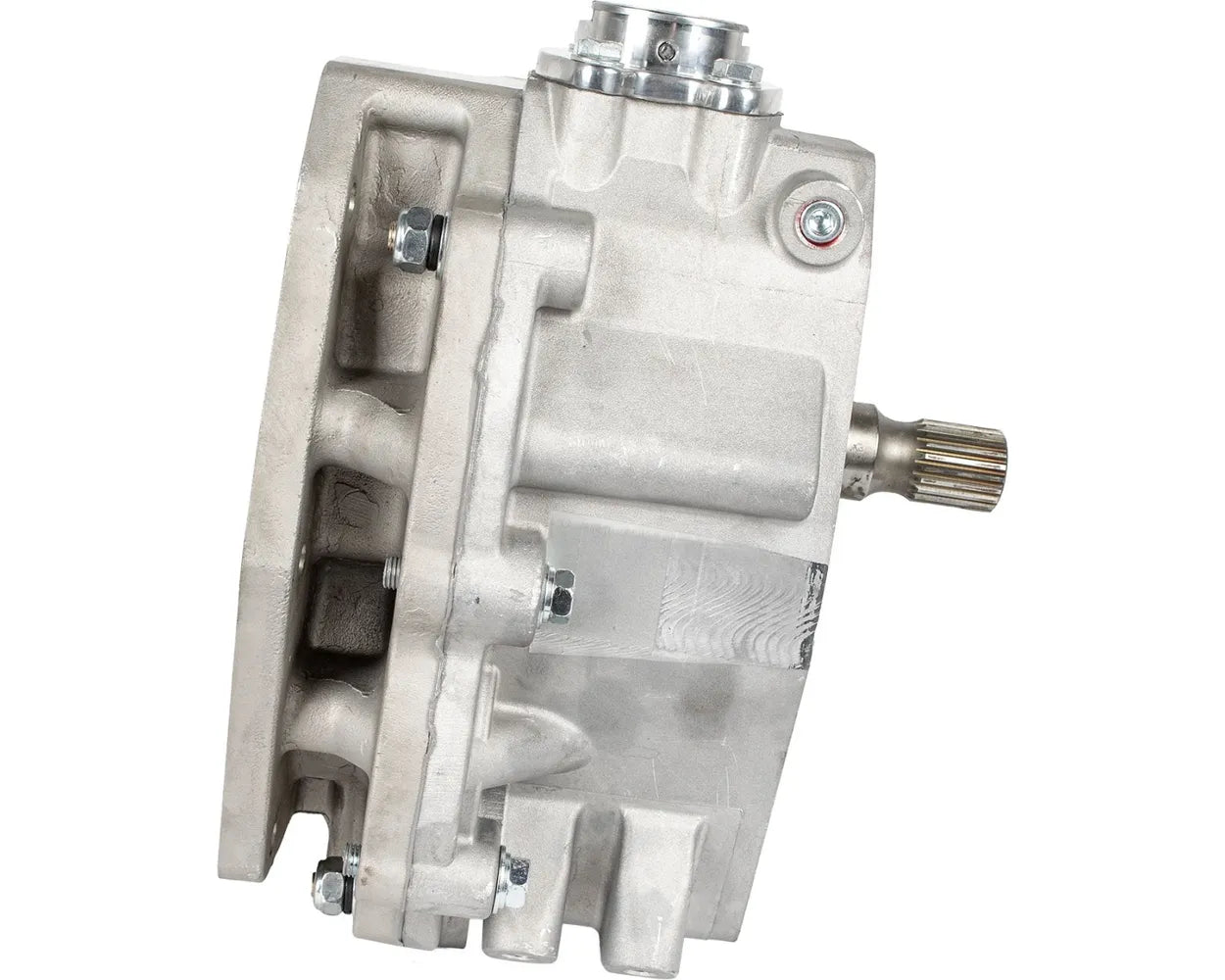

Trail-Creeper 2.28 Crawl Boxes

Transfer cases are made from two basic sections - the reduction section and the 4WD section. To build a dual transfer case, two reduction boxes are bolted back to back with a dual case adapter. These two are then bolted to a 4wd section. The Trail-Creeper shown is ready to bolt onto the front of a top shift style, gear driven Toyota transfer case.  Available with NEW or REMANUFACTURED 21-spline or 23-spline input and output gears.  Units are completely rebuilt and inspected. Low range gear ratio is 2.28. Floorboard and drive shaft modifications are required for dual transfer case installation. No core charge. One year warranty.

Note: If you are unsure if you have the 4" or 4.5" Forward Shift transfer case, please refer to the comparison image displayed here:

Forward Shift T-case Comparison

Available Options (with NEW gears):

  • TGI-309362 - Trail-Creeper 2.28 Crawl Box 21-Spline Input/21-Spline Output, Top Shift, New Gears
  • TGI-309363 - Trail-Creeper 2.28 Crawl Box 21-Spline Input/23-Spline Output, Top Shift, New Gears
  • TGI-309364 - Trail-Creeper 2.28 Crawl Box 23-Spline Input/23-Spline Output, Top Shift, New Gears
  • TGI-309365 - Trail-Creeper 2.28 Crawl Box 21-Spline Input/21-Spline Output, Forward Shift, 4" Offset, New Gears
  • TGI-309366 - Trail-Creeper 2.28 Crawl Box 21-Spline Input/23-Spline Output, Forward Shift, 4" Offset, New Gears
  • TGI-309367 - Trail-Creeper 2.28 Crawl Box 23-Spline Input/23-Spline Output, Forward Shift, 4" Offset, New Gears
  • TGI-309368 - Trail-Creeper 2.28 Crawl Box 21-Spline Input/21-Spline Output, Forward Shift, 4.5" Offset, New Gears
  • TGI-309369 - Trail-Creeper 2.28 Crawl Box 21-Spline Input/23-Spline Output, Forward Shift, 4.5" Offset, New Gears
  • TGI-309370 - Trail-Creeper 2.28 Crawl Box 23-Spline Input/23-Spline Output, Forward Shift, 4.5" Offset, New Gears

Available Options (with REMANUFACTURED gears):

  • 100500-1-KIT - Trail-Creeper 2.28 Crawl Box 21-Spline input/21-Spline Output, Top Shift
  • 100501-1-KIT - Trail-Creeper 2.28 Crawl Box 21-Spline input/23-Spline Output, Top Shift
  • 100502-1-KIT - Trail-Creeper 2.28 Crawl Box 23-Spline input/23-Spline Output, Top Shift
  • 100503-1-KIT - Trail-Creeper 2.28 Crawl Box 21-Spline input/21-Spline Output, Forward Shift, 4" Offset
  • 100504-1-KIT - Trail-Creeper 2.28 Crawl Box 21-Spline input/23-Spline Output, Forward Shift, 4" Offset
  • 100505-1-KIT - Trail-Creeper 2.28 Crawl Box 23-Spline input/23-Spline Output, Forward Shift, 4" Offset
  • 100506-1-KIT - Trail-Creeper 2.28 Crawl Box 21-Spline input/21-Spline Output, Forward Shift, 4.5" Offset
  • 100507-1-KIT - Trail-Creeper 2.28 Crawl Box 21-Spline input/23-Spline Output, Forward Shift, 4.5" Offset
  • 100508-1-KIT - Trail-Creeper 2.28 Crawl Box 23-Spline input/23-Spline Output, Forward Shift, 4.5" Offset
  • 302878-1-KIT - Trail-Creeper,2.28 Crawl Box 23-Spline Input/21-Spline Output, Top Shift
