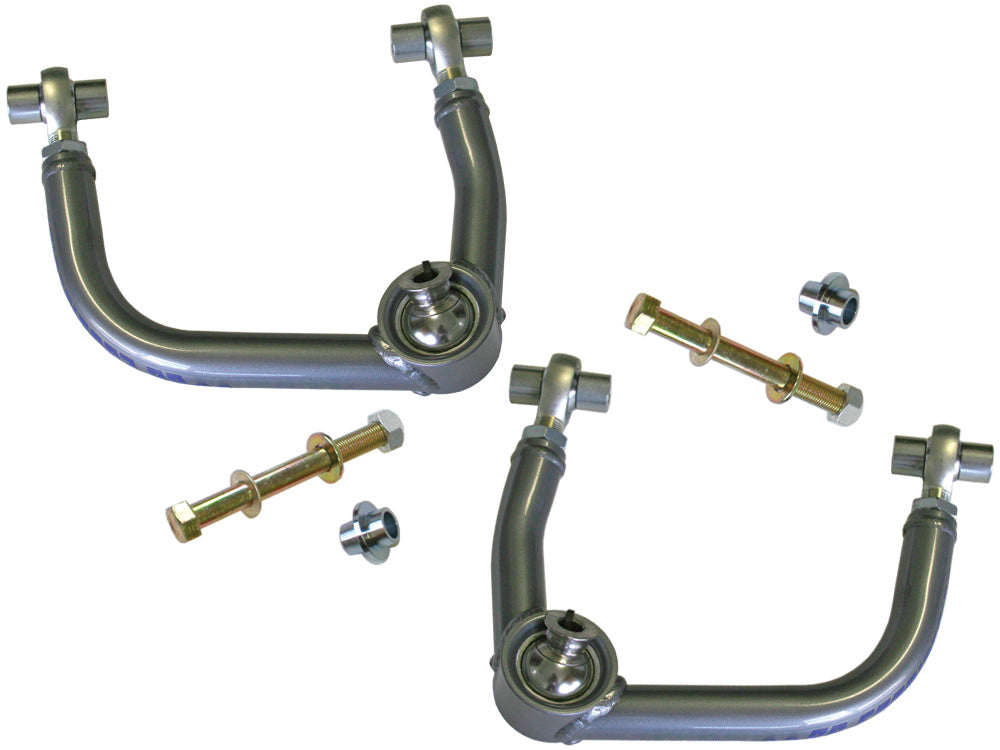

Toyota Uniball Upper Control Arm

• 4130 chromoly tubular upper control arms are 100% bolt on and hand crafted in the U.S.A.
• UCA's are designed with added caster to aid in retaining factory alignment specs when aftermarket lift kits are installed. This reduces the darting or wandering in the vehicle's steering when 2.5"-3" lift kits are installed.
• CNC machined tapered spindle adapters convert the factory ball joint to a 1" uniball for added component strength & maximum wheel travel.
• TOTAL CHAOS includes 1" I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball's also features a military grade PTFE woven fabric liner that helps prevent noise.
• Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel.
• Upper control arms combined with extended length coil over shocks will allow for up to 1" of additional wheel travel.
• Urethane bushings reduce bushing deflection compared to stock rubber bushings.
• Control arm pivots include zerk fittings to grease the urethane bushings & inner sleeves without disassembly.
• 2 stage powder coat process includes a durable clear coat to provide a long lasting finish.
• Complete grade 8 hardware kit is included.

OPTIONAL HEIM PIVOT UPGRADE

• TC includes 3/4" chromoly heim joints for the pivots.
• Heim upper control arms are fully adjustable to allow maximum tuning of caster and camber.
• Designed for use on 6" or higher drop bracket lift kits.
