Description
Trail-Gear is proud to bring you the first complete Toyota Full Hydraulic Steering Kit. This kit comes with everything needed to build a fully hydraulic steering system. All mounting brackets are included and have been specifically designed for Toyota applications and ease of installation.
This kit takes all the guess work out of setting up a hydraulic steering system. The pump has an all steel housing and puts out 4.5 GPM of flow and 1650 PSI of pressure. All high pressure hoses are steel braided with crimped-on ends. This kit is ideal for use with links and also works with most leaf spring applications. Our kit is the most user friendly kit on the market, we thought of everything so you don''t have to.

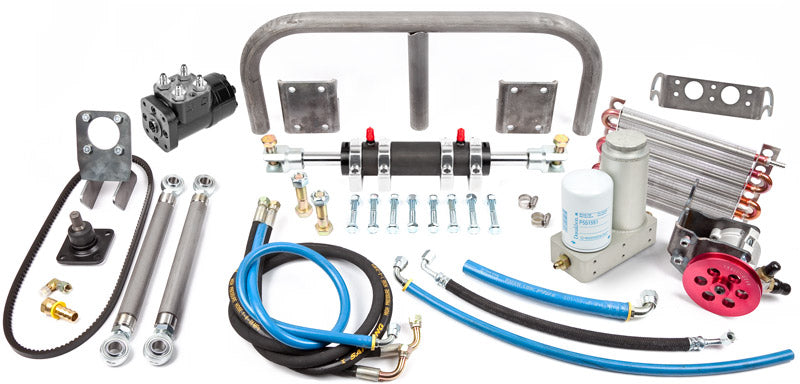

Kit Includes:
- 6, 8", or 10"" Double Ended Ram and Clevis Kit
- Orbital (100ml, 125ml, or 160ml)
- Full Hydraulic Steering Pump with Pulley
- Tie Rod Kit
- Double Ended Ram Mounting Kit
- Steering Column
- Orbital Mounting Kit
- Reservoir with Filter
- Reservoir Bracket
- Cooler
- Power steering belt
- Complete hose kit
- All necessary hardware

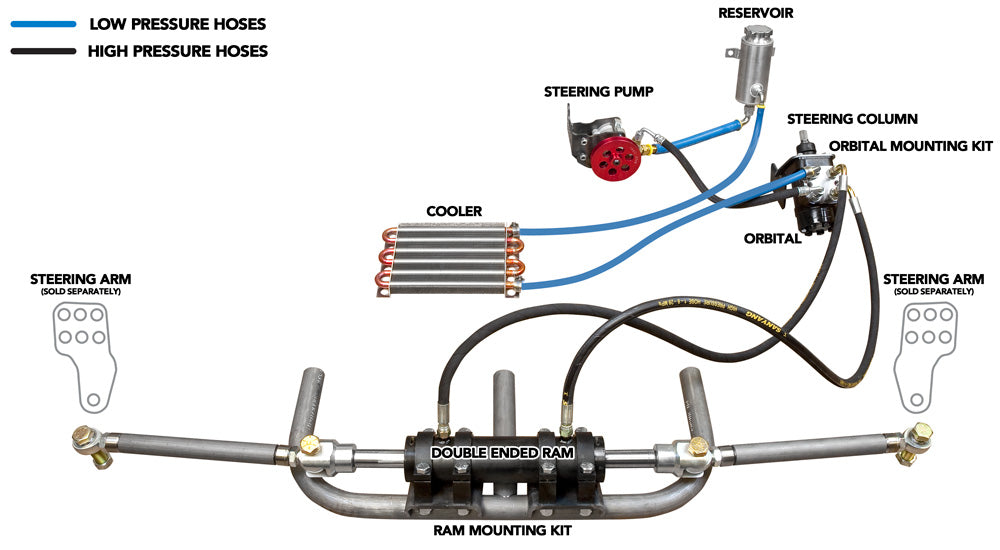

Works with most leaf spring applications, please call our technicians at 559.252.4950 to ensure compatibility before making your purchase. Flow chart for illustration only, actual product may vary
Note: Never use ATF fluid, or a semi-synthetic blend. This will void the warranty. Royal Purple fully synthetic power steering fluid recommended. Ok to use standard power steering fluid or a full synthetic.
Available Options:
- Full Hydraulic Steering Kit w/6" Ram & 100mL Orbital
- Full Hydraulic Steering Kit w/8" Ram & 125mL Orbital
- Full Hydraulic Steering Kit w/10" Ram & 160mL Orbital
