Description

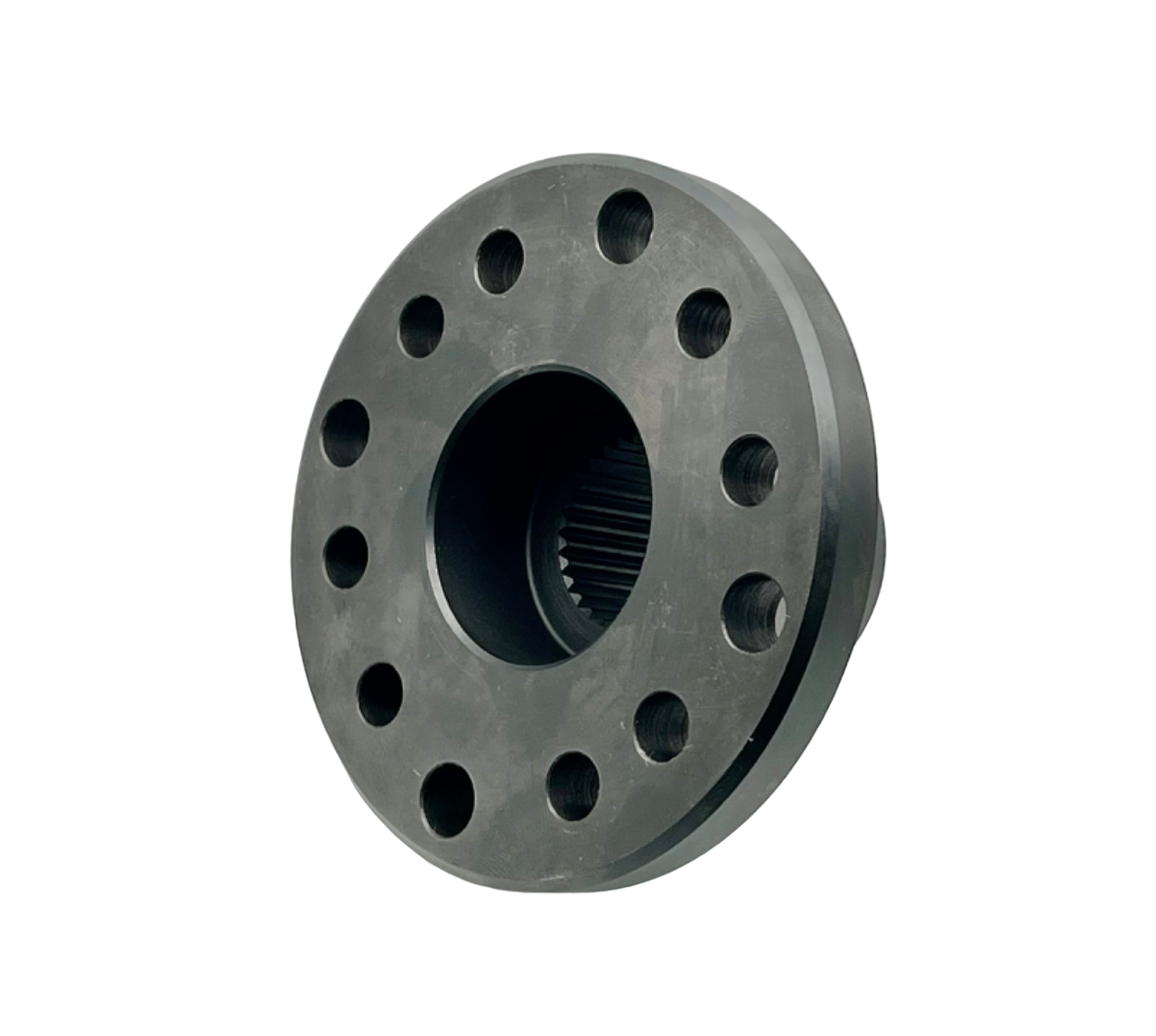

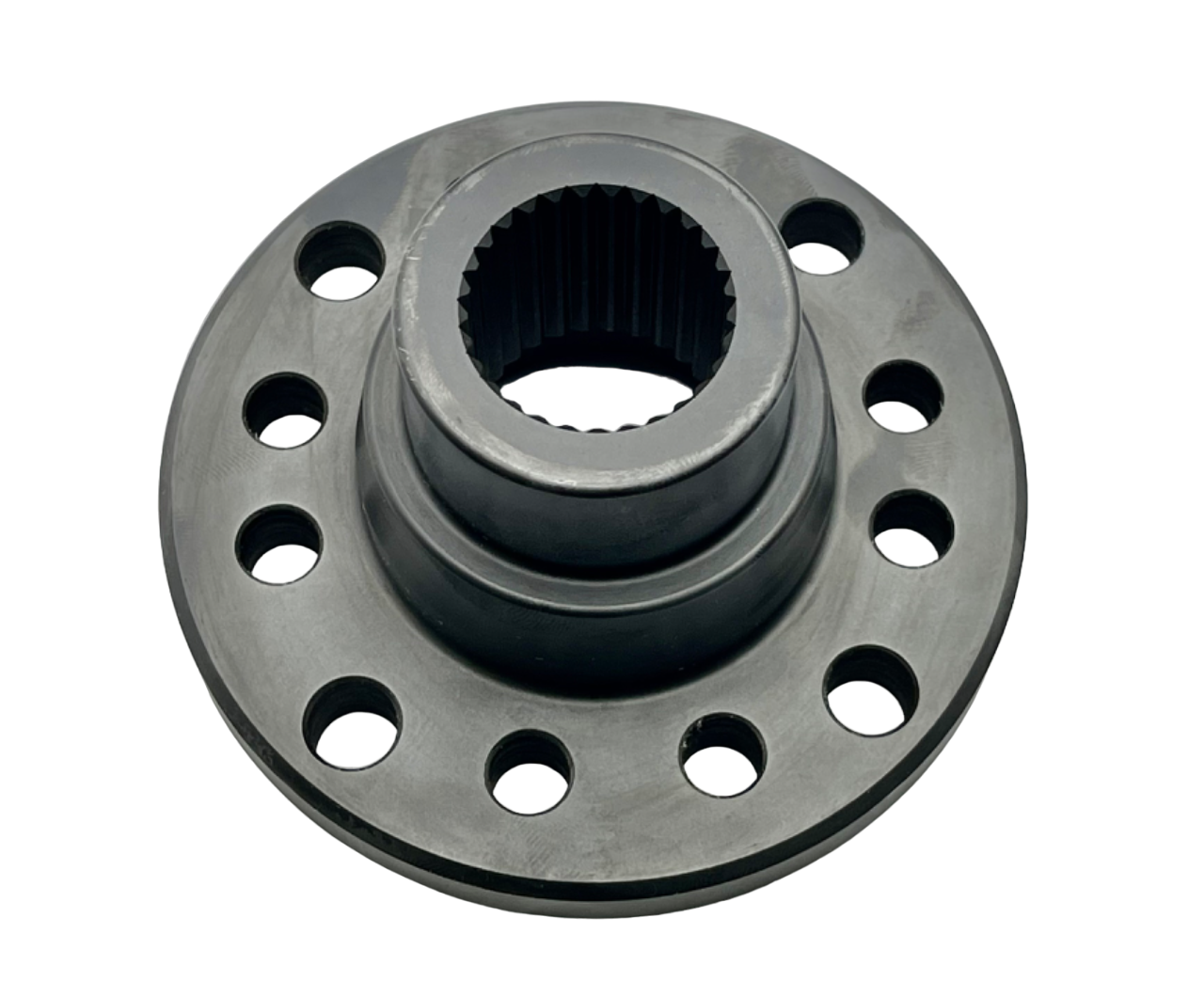

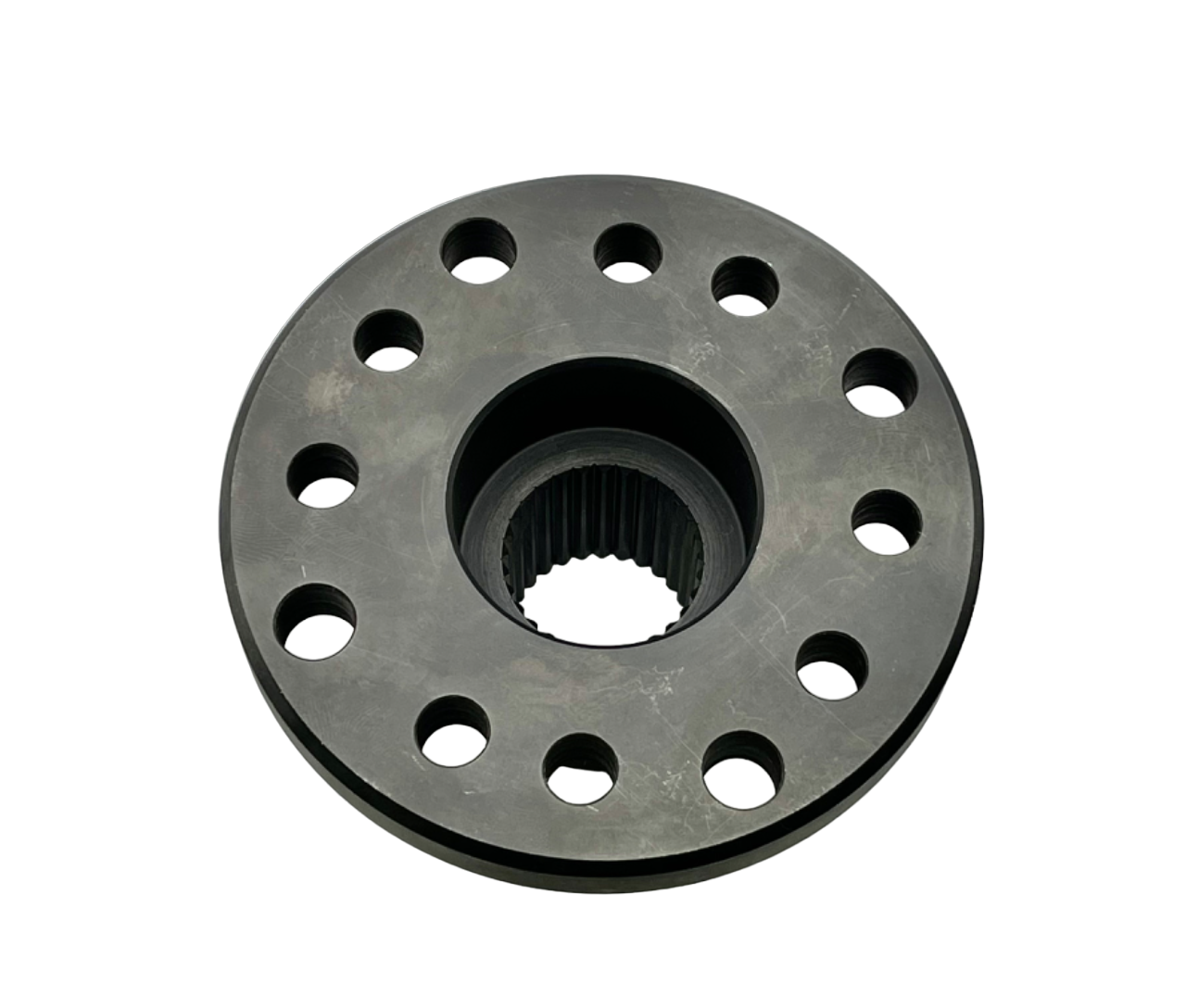

Finally a high quality pinion flange to run your Toyota driveshafts with a Dana 60 or Dana 70! This forged pinion flange will fit all common D60 / D70 29 spline pinions and allow you to use your 1979-1995 Toyota Truck & 4Runner Drivelines, as well as 1996-2015 Tacoma drivelines and FJ60 / FJ62 Land Cruiser Driveshafts. We recommend using the more common, 1984-2004 Toyota driveshaft parts as they hold up much better than the 2005-2015 Tacoma (Spicer 1330) parts and they will operate at a higher angle before bind.
Flange Kit Includes:
Forged 29 spline triple drilled pinion flange / yoke (1)

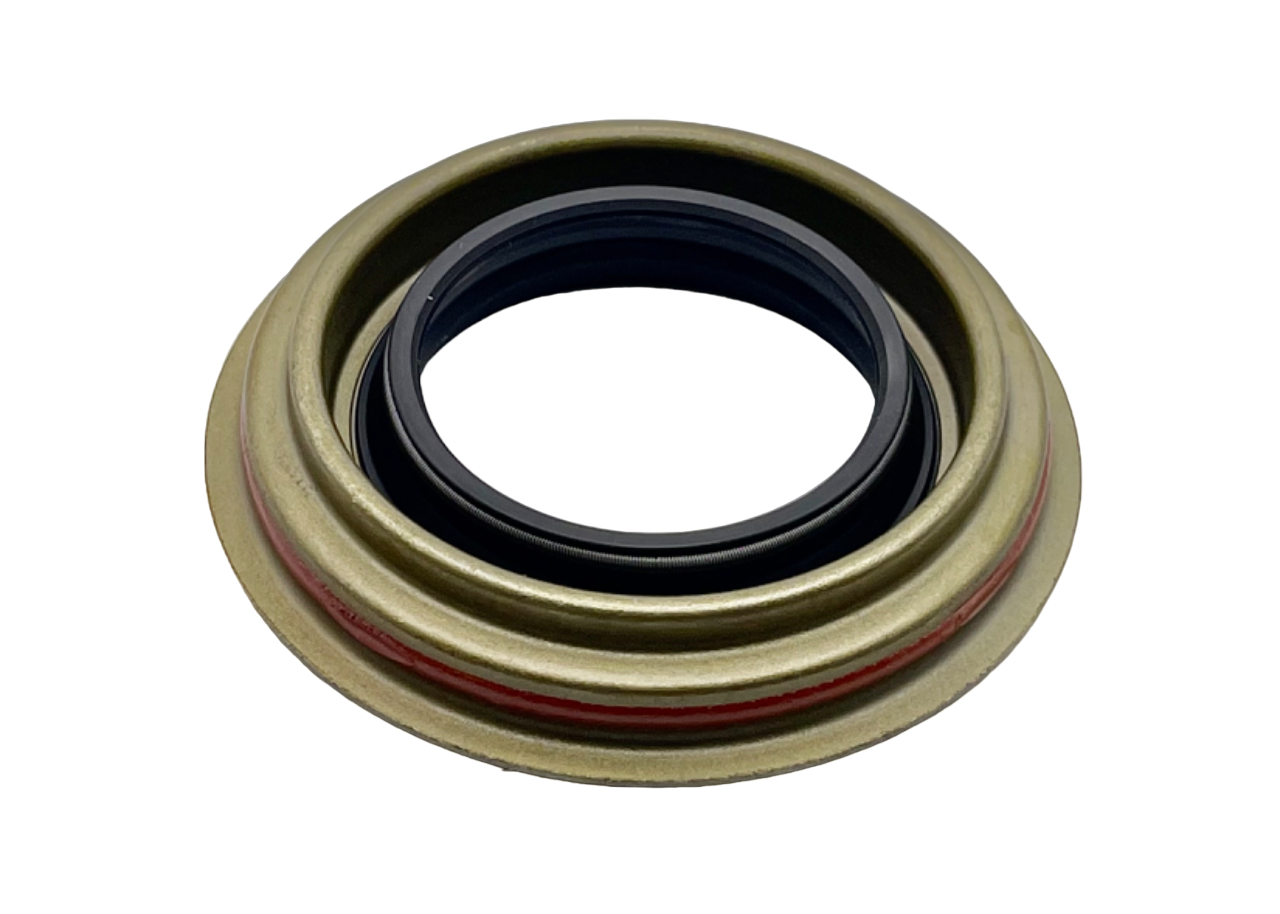

HD pinion seal (1)
6 Point Pinion nut & Washer (1) (requires 1-1/4" socket)
10mm Extended Toyota driveshaft bolts (4)
Bolt Patterns:
60 x 60mm, 10mm hole
56 x 64mm, 10mm hole
66 x 66mm, 11mm hole
