10.5" GM 14 Bolt FF To Toyota Forged Pinion Flange Kit

YotamastersSKU: YM-14B-TOY-10mm
No reviews

Price:
Sale price$199.00

Description

Finally a high quality pinion flange to run your Toyota driveshafts with a GM 14 Bolt Full Float axle. With its unique one piece design, this forged pinion flange will fit all common Full Float Corporate 14 Bolt 30 spline pinions and allow you to use your 1979-1995 Toyota Truck & 4Runner Drivelines, as well as 1996-2015 Tacoma drivelines and FJ60 / FJ62 Land Cruiser Driveshafts. We recommend using the more common, 1984-2004 Toyota driveshaft parts as they hold up much better than the 2005-2015 Tacoma (Spicer 1330) parts and they will operate at a higher angle before bind.

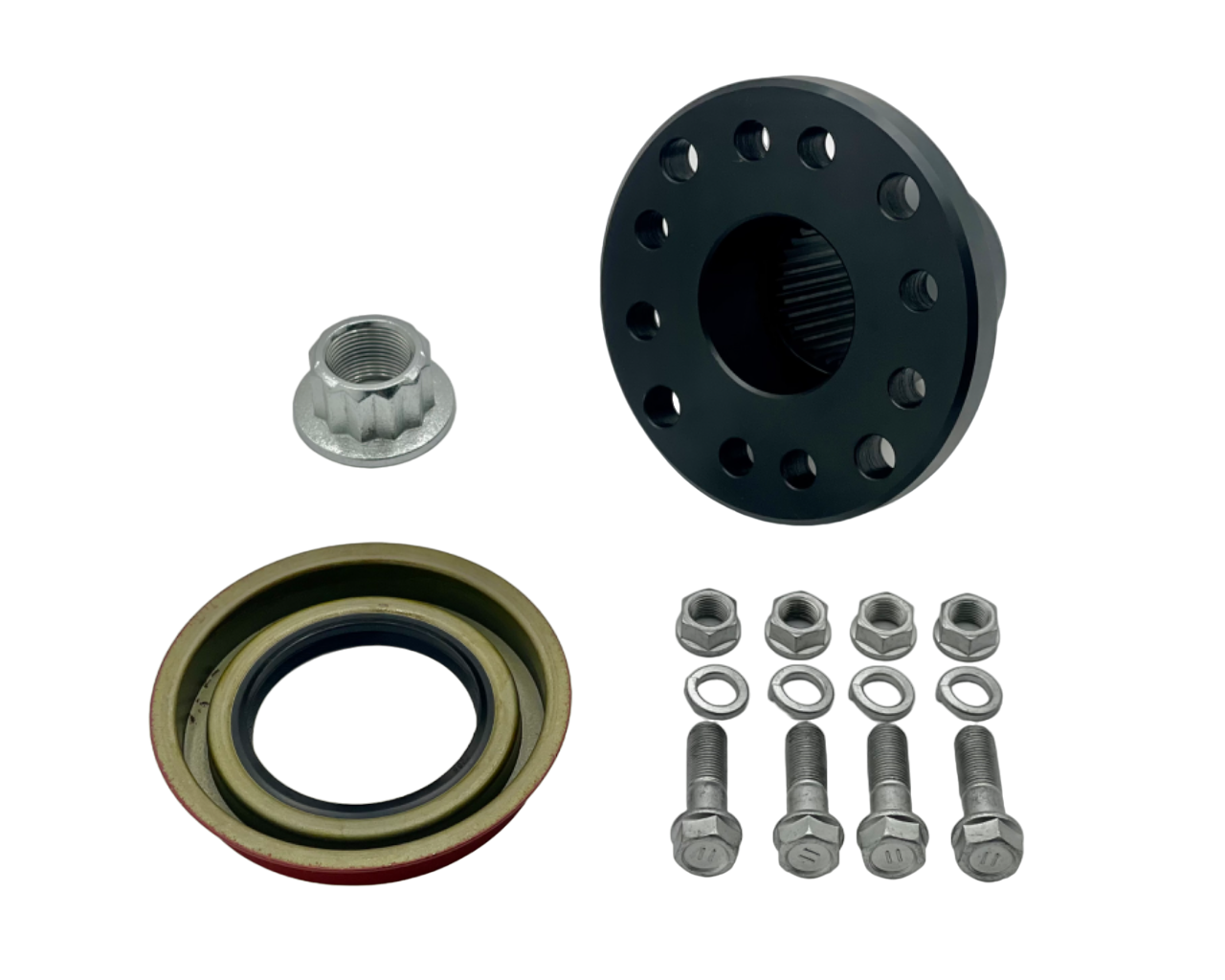

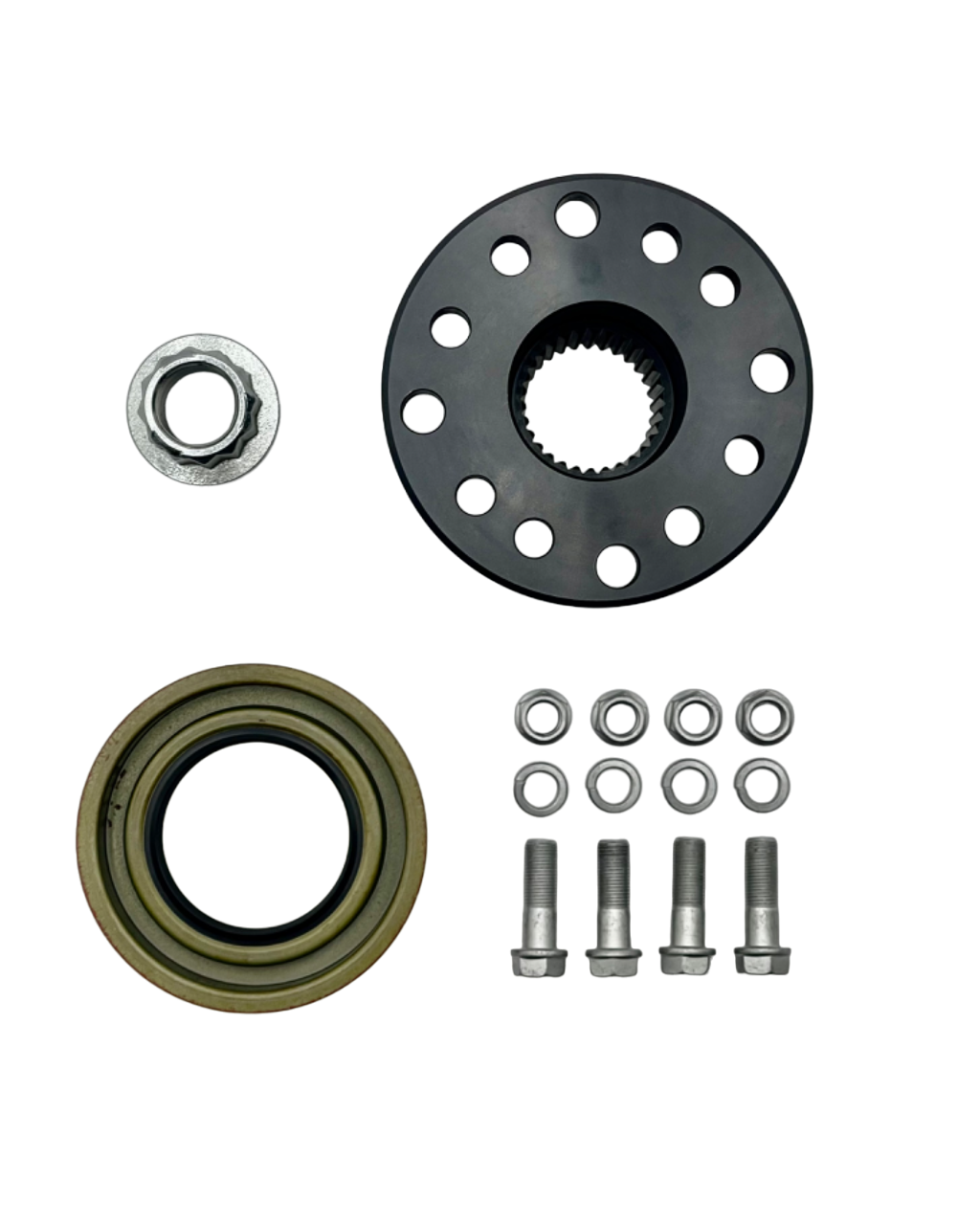

Flange Kit Includes:

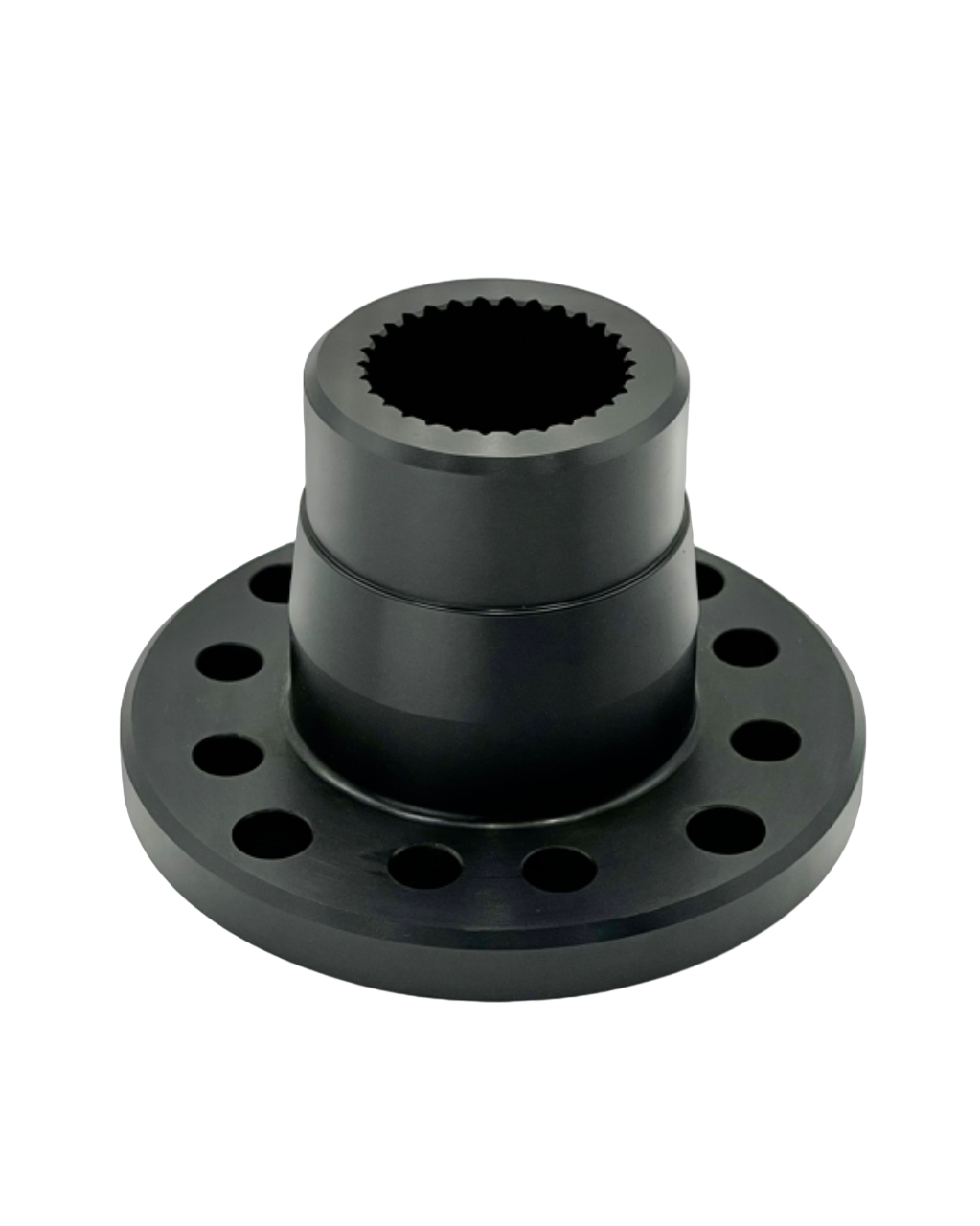

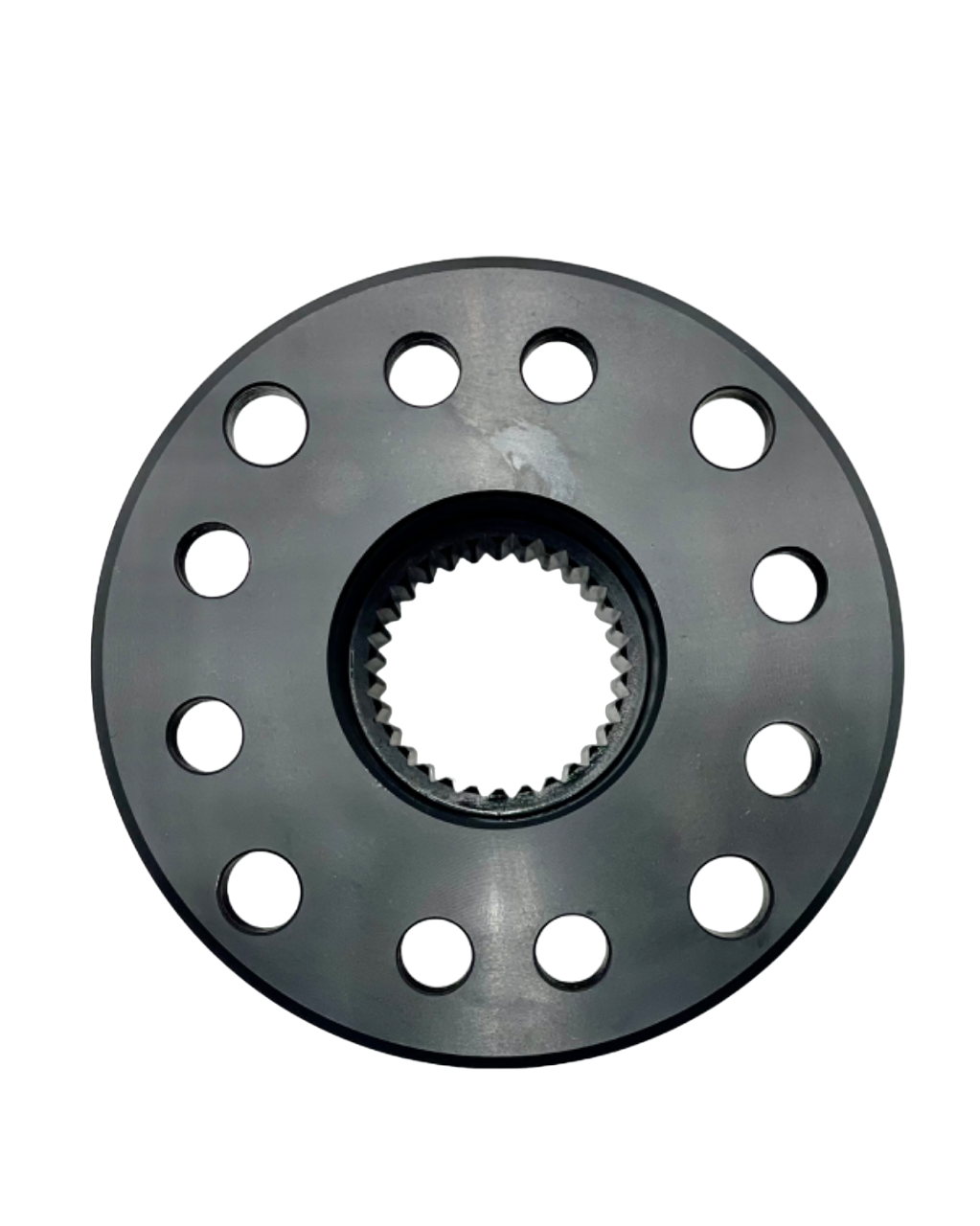

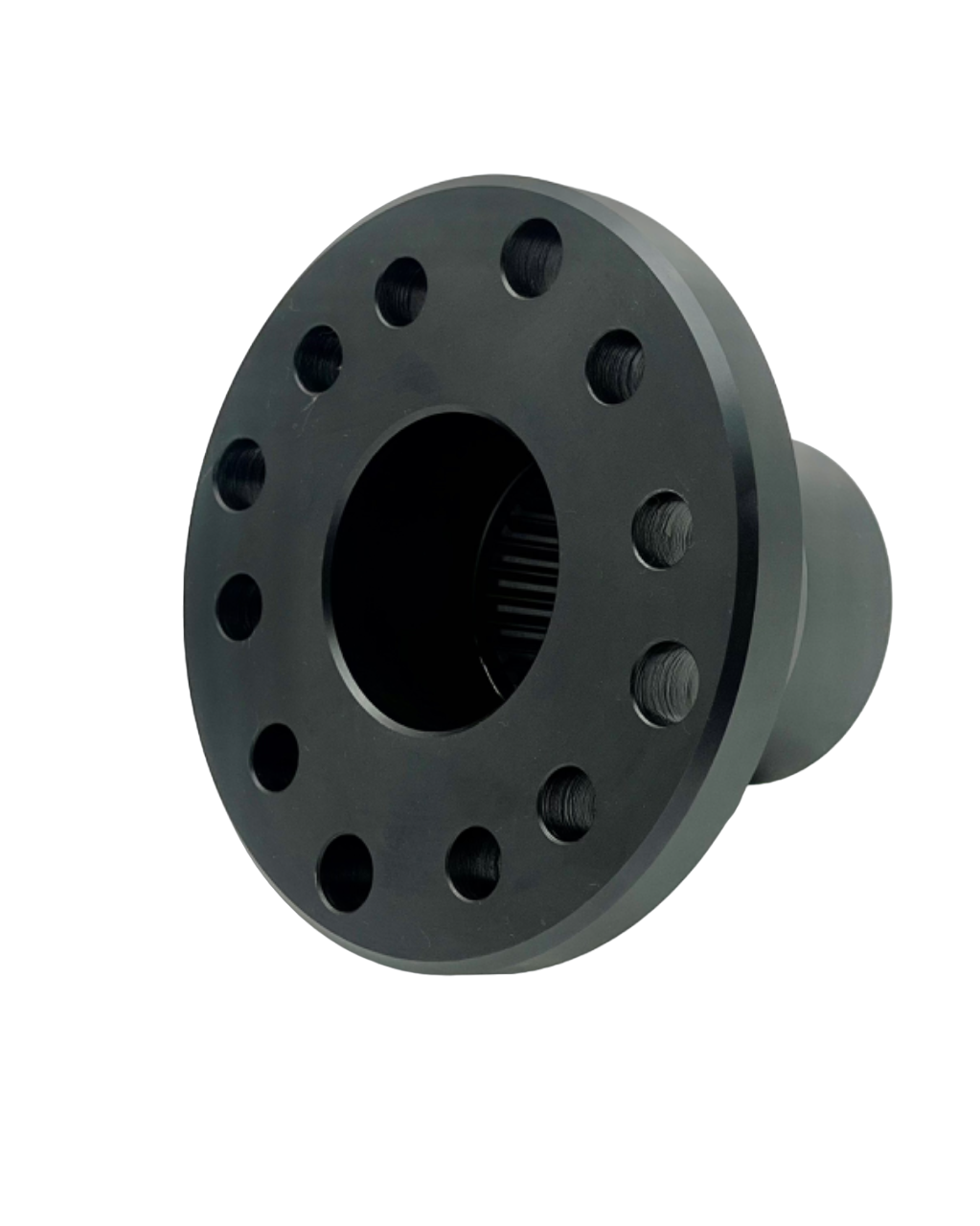

Forged 30 spline triple drilled pinion flange / yoke (1)

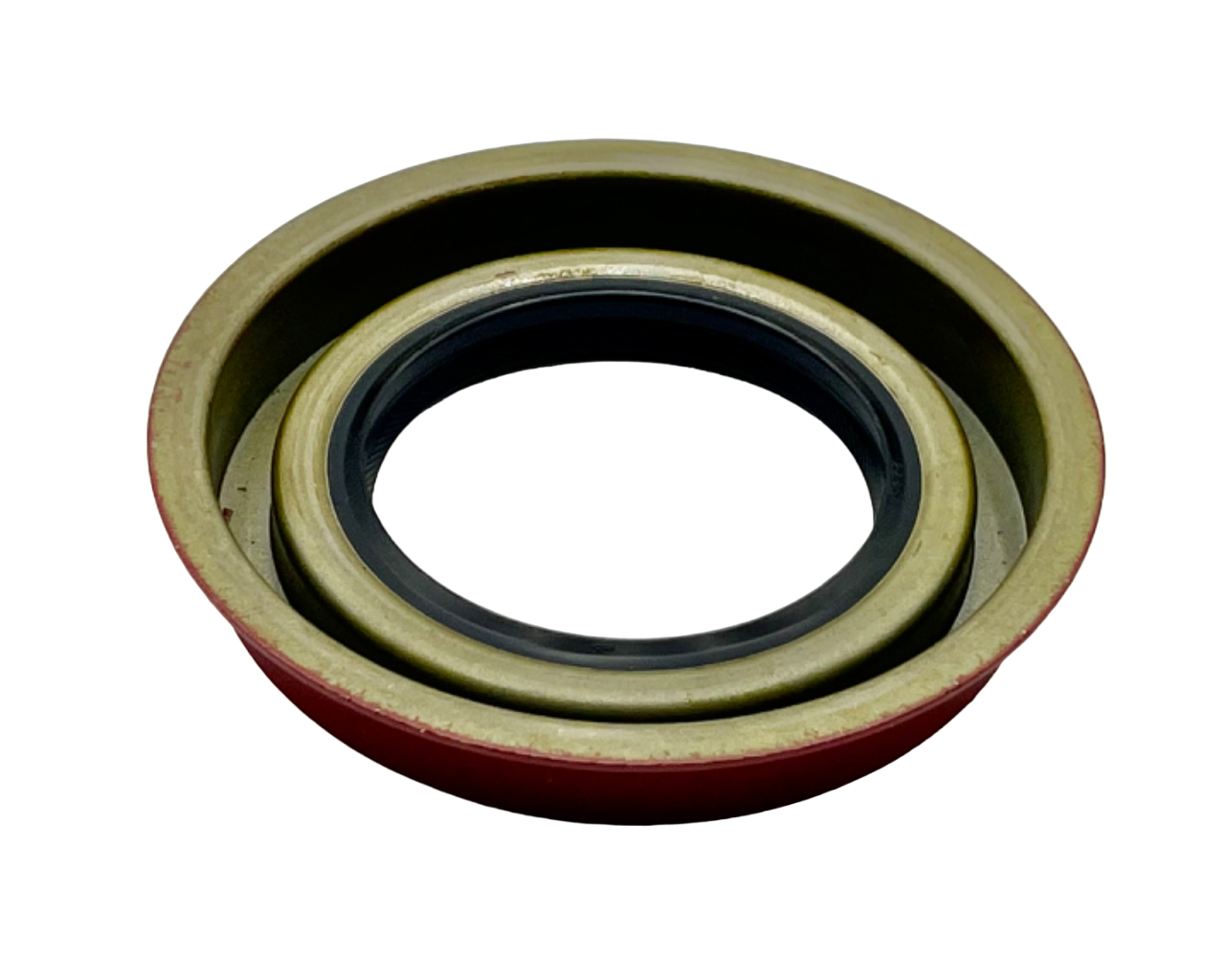

HD pinion seal (1)

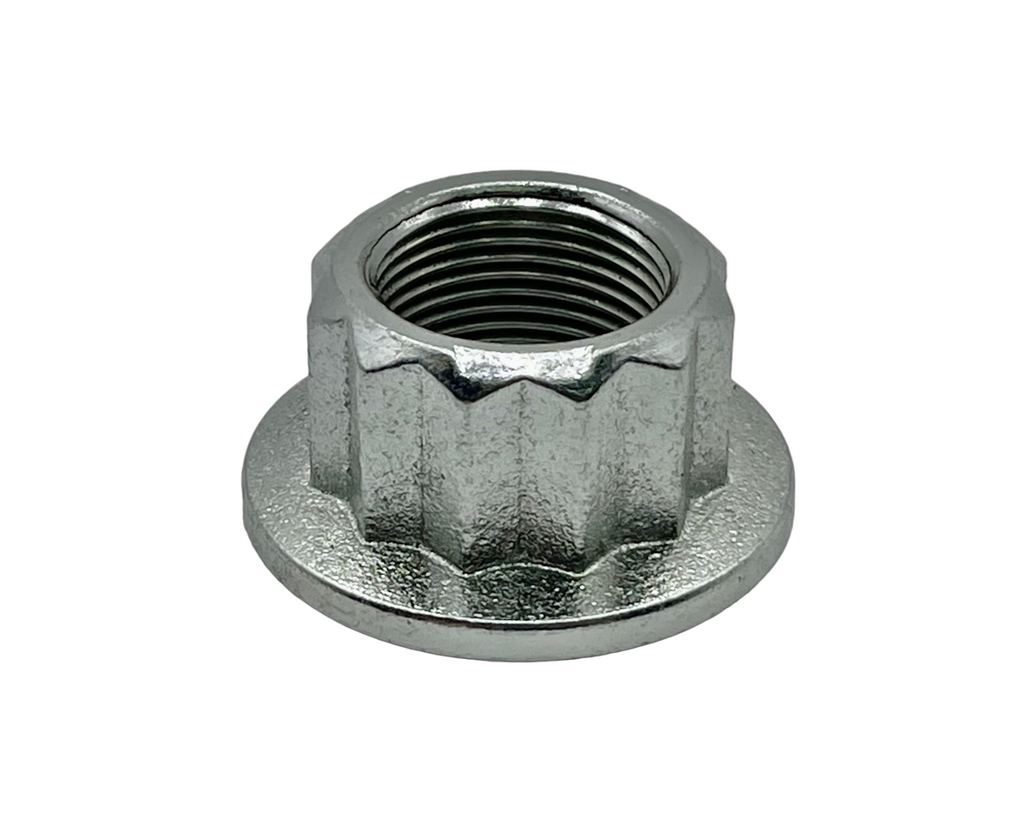

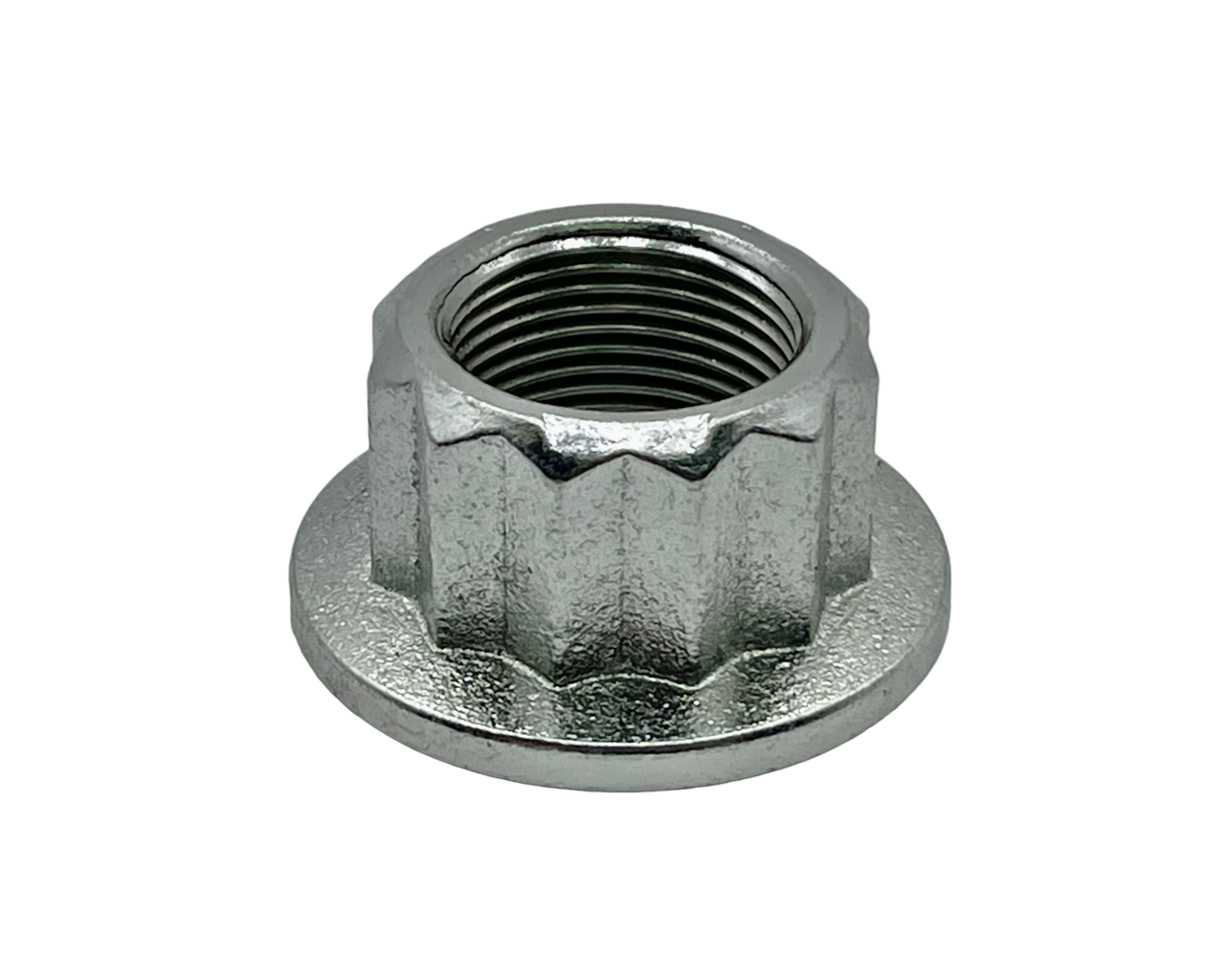

12 Point Pinion nut (1) (requires 30mm 12 point socket)

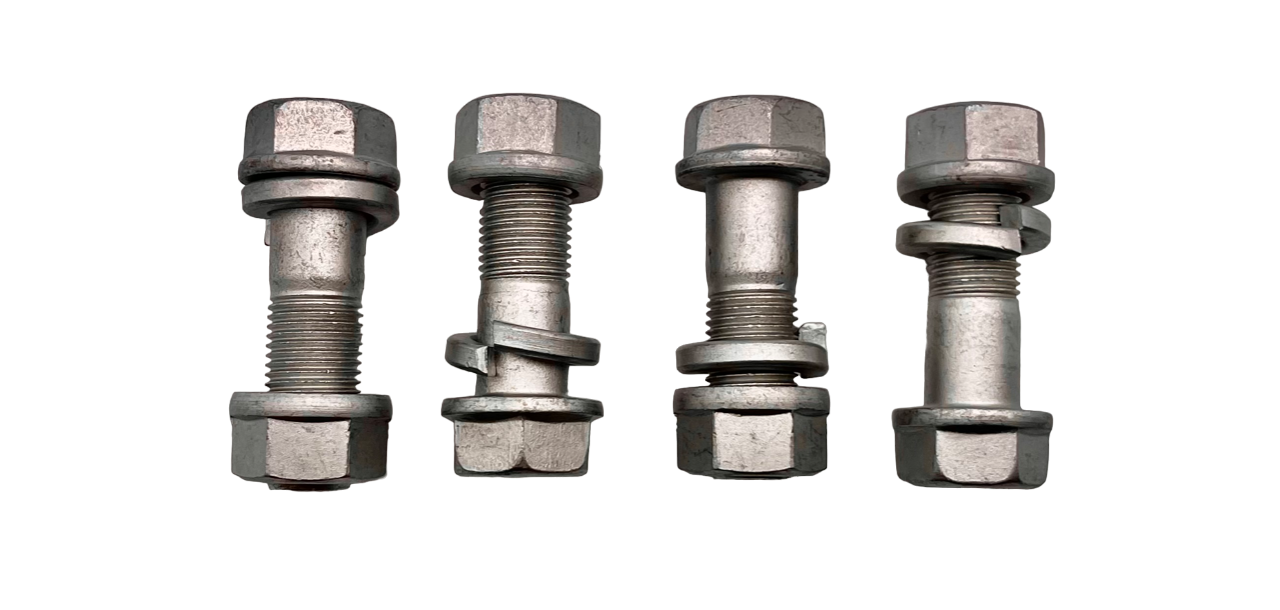

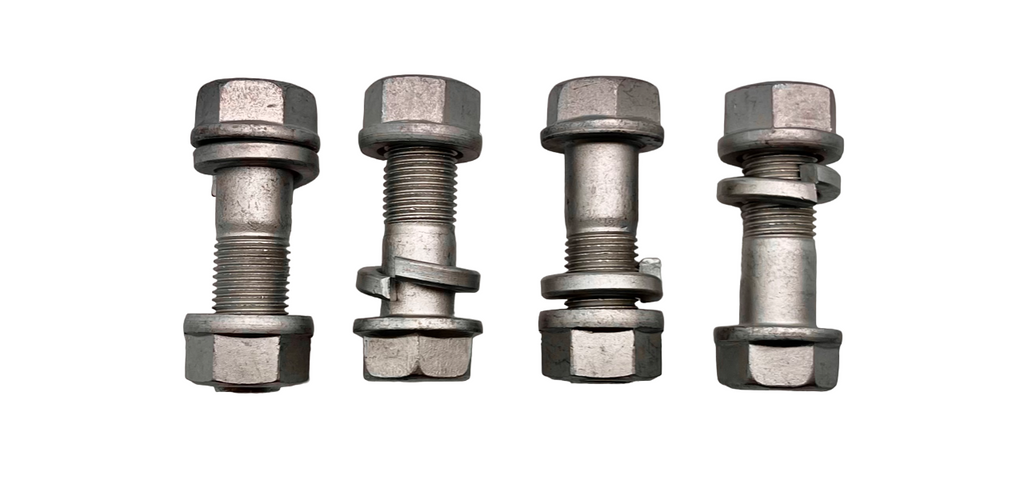

10mm Extended Toyota driveshaft bolts (4)



Bolt Patterns:

60 x 60mm, 10mm hole

56 x 64mm, 10mm hole

66 x 66mm, 11mm hole
