Longfield™ FJ80 24-Spline Birfield/Axle Kit

LongfieldSKU: 301712-1-KIT
No reviews

Price:
Sale price$1,154.85

Description

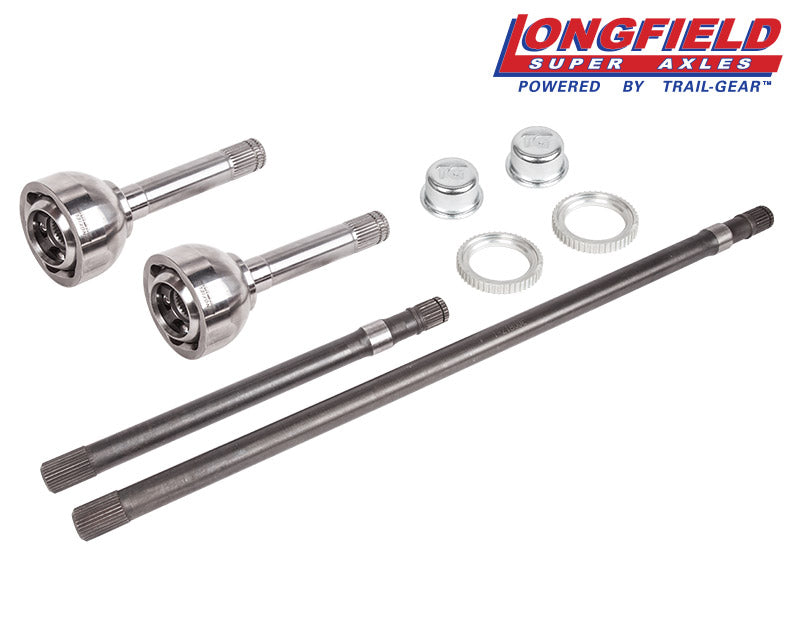

Longfield™ FJ80 Gun Drilled 24-Spline Super Set

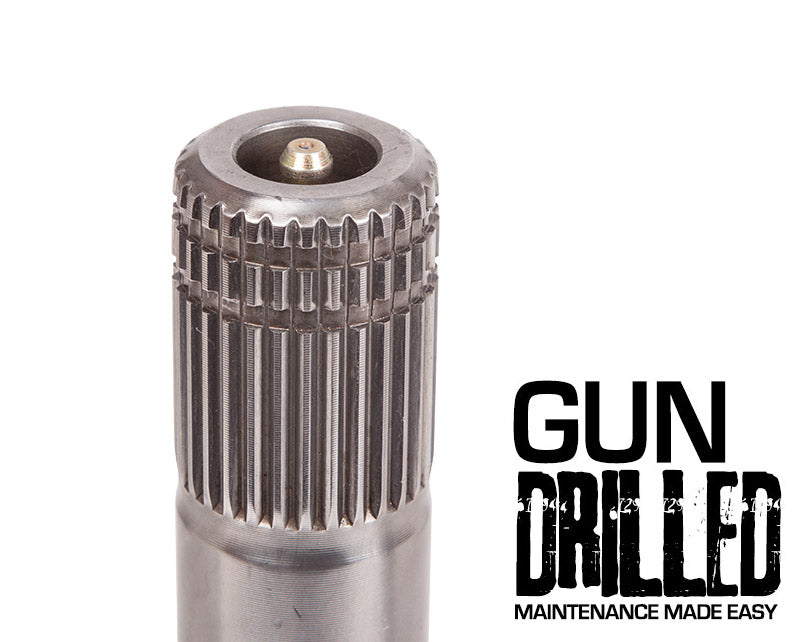

The Longfield™ FJ80 Gun Drilled 24-Spline Birfields are made out of 100% chromoly and are precision polished to remove any imperfections that may cause stress risers. The internals of the birfield are also made from 4340 chromoly and are dual heat treated for superior strength. The birfield has a M8 grease zerk at the end of the stub shaft and is gun drilled through the center of the birfield to allow for grease to pass through the zerk fitting and into the internals. This will save you precious time by eliminating the need to disassemble your axle just to service your birfields.

The FJ80 Gun Drilled 24-Spline Birfields also have a shallow relief near the splines on the stub shaft known as a Machined Spline Saver. The Machined Spline Saver eliminates stress concentrations caused by grooving from the tool that makes the splines on the stub shaft. The stress concentration from the spline groove is a common failure point on birfield stub shafts. The stub shaft of the Birfield has dual snap ring grooves to accommodate FJ80s with short and long drive flanges.

The axle shafts are also made out of 4340 chromoly

Included in this kit is a set of new FJ80 ABS Tone Rings. This will allow you to install the Longfield™ FJ80 Gun Drilled 24-Spline Super Set on both ABS and Non-ABS FJ80 applications. We also include extended dust caps to allow you to use these birfields on 1990-1993 FJ80 models that use short drive flanges. No other kit on the market can compare.

Specifications:

  • Made out of 100% chromoly and are precision polished to remove any imperfections that may cause stress risers
  • Birfield housing is made out of forged 4340 chromoly steel
  • Birfield stub shaft has dual snap ring grooves to accommodate FJ80s with short and long drive flanges
  • Internals of our Longfield™ birfields are made out of 4340 chromoly steel and then dual heat-treated for superior strength
  • Machined spline saver to eliminate stress concentrations from the spline groove
  • Gun drilled to create grease passage through the birfield
  • M8 grease zerk at the end of stub shaft for easy greasing of the birfield
  • Includes FJ80 ABS Tone Ring
  • Includes extended drive flange dust caps
  • The axle shafts are also made out of 4340 chromoly steel



Application Data:

  • 1990-1997 Toyota Land Cruiser FJ80**
  • 1995-1997 Lexus LX 450

** 1990-1993 models with short drive flanges will need to obtain the taller drive flanges (Toyota P/N 43421-60040) to be able to reuse the OEM grease caps.
